Complete laser solutions to support your production

Innovative laser welding, laser cutting, and automation technologies for sheet metal processing, engineered as turnkey systems that deliver stable production, from feasibility study to full-scale rollout.

Request a Meeting at Fabtech 2026Request a Meeting
500+
Systems Installed
30+
Years Engineering

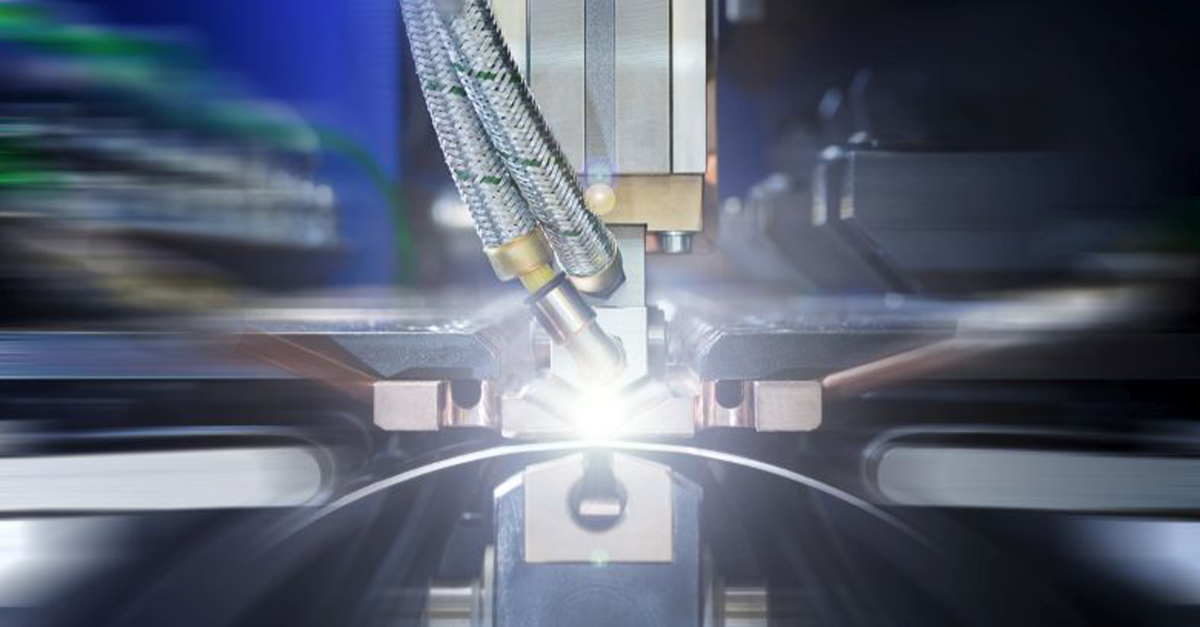

Laser Welding Solutions for Demanding Sheet Metal Applications

Successful laser welding depends on more than the laser source. Part geometry, edge preparation, clamping accuracy, material properties, automation, and inspection all influence the finished weld.

Weil Technology brings these elements together in one engineered manufacturing solution.


Our capabilities include:
- Longitudinal laser seam welding
- Circumferential and orbital laser welding
- 3D laser welding and cutting
- Laser welding with cold wire
- Laser-TIG and laser-MAG hybrid welding
- Scanner and Cartesian laser welding
- Automated loading and unloading
- Seam tracking and process monitoring
- Leak testing and optical inspection
- Integrated forming, marking, cutting, and finishing

The result is a stable, repeatable process designed around your component, production volume, and quality requirements.

fertigungsliniewarmwasserspeicher waermetauscher 800x800 crop
Weil Technology Laser Welding Capabilities

Laser welding machines

Select a machine to review its dimensional, process, and performance specifications.

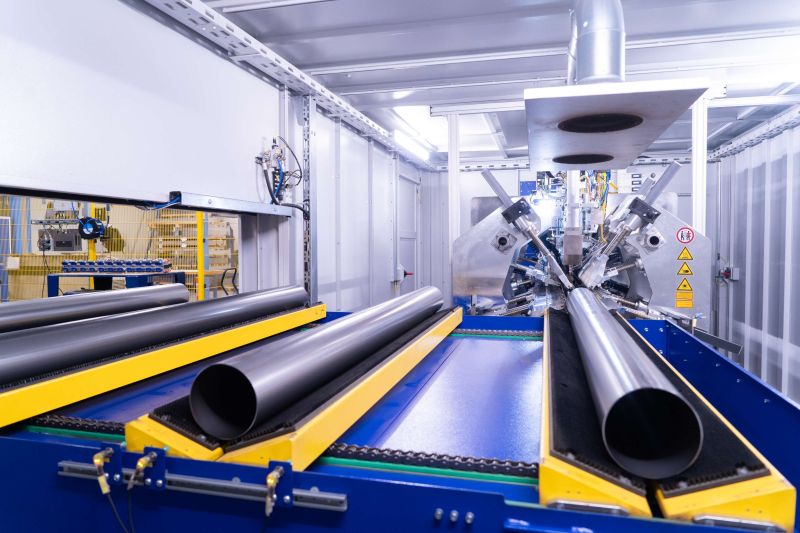

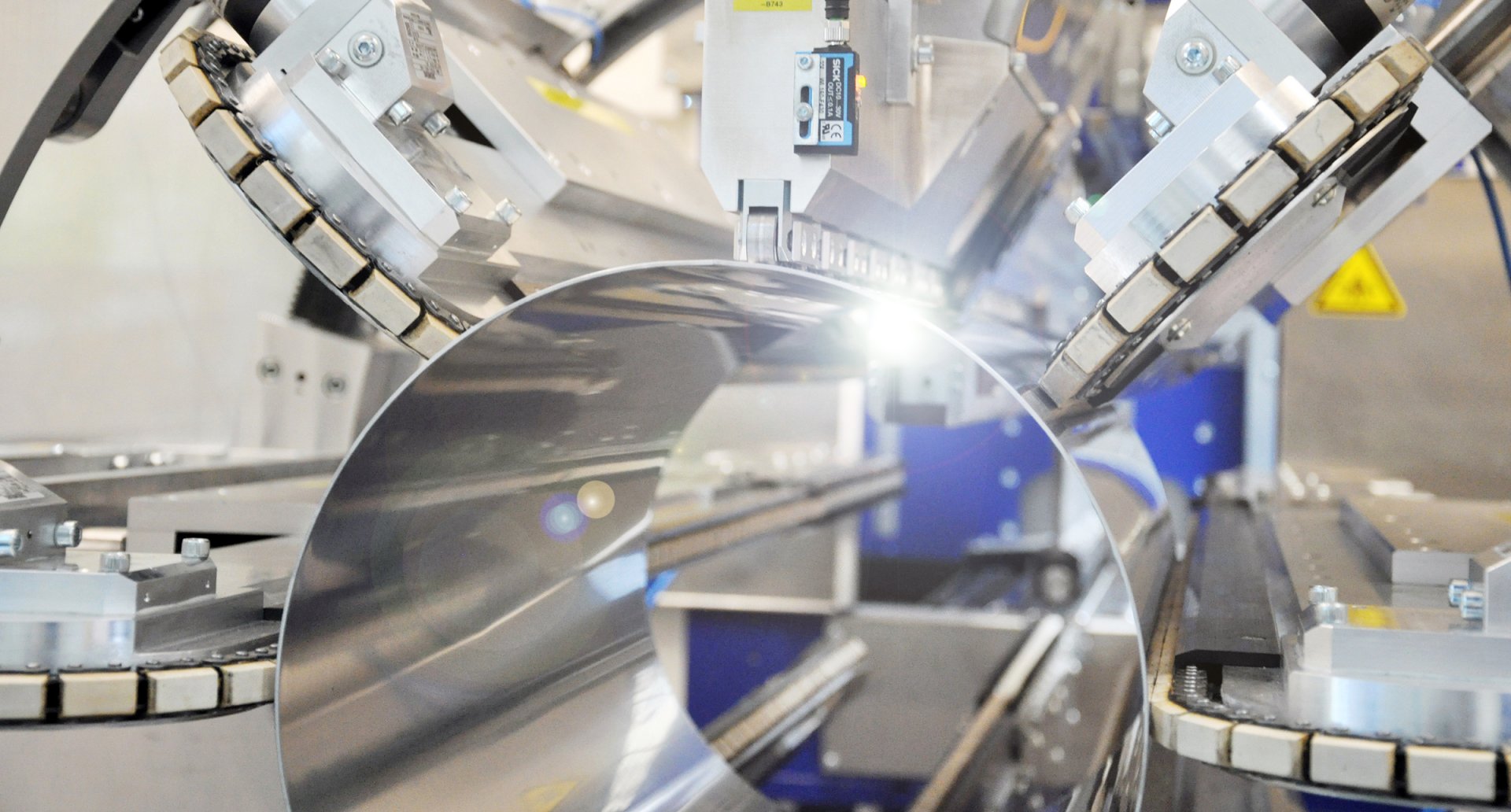

Single-station longitudinal seam-welding system for flexible production of round, oval, and polygonal tubes.

  • Tube diameter: 3.0–39.4 in (76–1,000 mm)
  • Tube length: 3.9–78.7 in (100–2,000 mm)
  • Material thickness: 0.016–0.079 in (0.4–2.0 mm), with the lower limit varying by model
  • Materials: steel and stainless steel; others on request

Flexible production line combining multi-roll forming and continuous longitudinal laser welding for thin-walled quality tubes.

  • Tube diameter: 2.4–23.6 in (60–600 mm)
  • Tube length: 9.8–86.6 in (250–2,200 mm)
  • Material thickness: 0.008–0.031 in (0.2–0.8 mm) or 0.016–0.039 in (0.4–1.0 mm), depending on model
  • Input: stacked blanks or coil

Fully automatic roll-forming and longitudinal butt-welding line for heavier-gauge tubes and vessel shells.

  • Inside diameter: 3.1–24.8 in (80–630 mm)
  • Tube length: 7.9–78.7 in (200–2,000 mm)
  • Material thickness: 0.039–0.138 in (1.0–3.5 mm)
  • Materials: mild steel, galvanized mild steel, and stainless steel

Automatic tube-production system with program-controlled diameter adjustment for flexible, high-output manufacturing.

  • Tube diameter: 3.1–15.7 in (80–400 mm)
  • Tube length: 3.1–49.2 in (80–1,250 mm)
  • Material thickness: 0.031–0.079 in (0.8–2.0 mm)
  • Materials: steel and stainless steel; others on request

Flexible 3D processing cell that combines laser cutting and welding in one clamping with up to three processing optics.

  • Work envelope: 39.4 × 27.6 × 13.8 in (1,000 × 700 × 350 mm)
  • Laser power: 500–8,000 W
  • Materials: mild steel, stainless steel, aluminum, and copper
  • Maximum repeatability: ±0.0012 in (±0.03 mm)

Application-specific multi-axis cell for high-precision 3D laser welding and cutting with intelligent tooling concepts.

  • Four processing-optic axes plus one or more workpiece axes
  • Published contour accuracy: 0.002 in (0.05 mm)
  • Gas-tight precision and consistent weld penetration
  • Scanner or Cartesian configurations available by application
fertigungsliniewarmwasserspeicher waermetauscher 800x800 crop

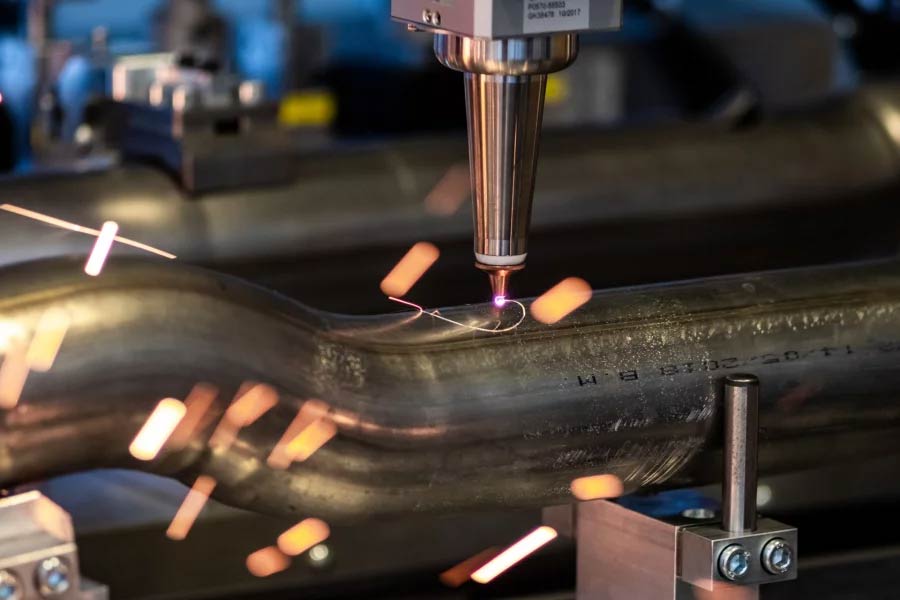

Precision Laser Cutting Built Around Your Production Process

The right laser-cutting solution depends on more than laser power.

Material properties, part geometry, clamping, optics, assist gas, automation, tolerances, edge-quality requirements, and production volume all affect the finished component.


Our capabilities include:
- High-dynamic 2D and 2.5D laser cutting
- Precision thin-sheet processing
- 3D laser cutting and welding
- Laser cutting of large-diameter tubes
- Coil, plate, blank, and individual-part processing
- Flying-optics configurations
- Multi-optic laser processing
- Automated loading and unloading
Integrated forming, punching, and embossing
- Laser marking and component traceability
- Optical inspection and leak testing
- Turnkey production-line integration


Weil Technology Laser Cutting Machines

Laser cutting machines

Select a Weil Technology and/or Novatec machine to review its dimensional, accuracy, and performance specifications.

Novatec, a Weil Technology subsidiary, developed Novacut for precise, high-speed laser cutting of round metal tubes, originally serving HVAC and automotive production.

  • Standard: 2.0–27.6 in (50–700 mm); length up to 63.0 in (1,600 mm); wall 0.016–0.079 in (0.4–2.0 mm)
  • Automatic: 2.4–13.8 in (60–350 mm); length up to 63.0 in (1,600 mm); wall 0.016–0.039 in (0.4–1.0 mm)
  • Standard loading: manual; Automatic loading/unloading: automatic
  • Materials include copper, stainless steel, mild steel, and galvanized steel

Expanded Novacut configurations cover large diameters, heavier walls, combination processing, and customized applications.

  • Big Diameter: 2.0–39.4 in (50–1,000 mm); length up to 63.0 in (1,600 mm); wall 0.016–0.079 in (0.4–2.0 mm)
  • Heavy Pipe: 2.4–27.6 in (60–700 mm); length up to 78.7 in (2,000 mm); wall 0.016–0.157 in (0.4–4.0 mm)
  • Combi Tube: 2.0–27.6 in (50–700 mm); length up to 63.0 in (1,600 mm); wall 0.016–0.079 in (0.4–2.0 mm)
  • Combi Blank: sheet format 59.1 × 118.1 in (1,500 × 3,000 mm); thickness 0.016–0.079 in (0.4–2.0 mm)

Highly dynamic 2D and 2.5D thin-sheet cutting for stand-alone use, autonomous coil or plate processing, or integration into a production line.

  • Thin-sheet application range: 0.006–0.020 in (0.15–0.5 mm)
  • Work area: 19.7 × 19.7 × 4.7 in (500 × 500 × 120 mm) or 39.4 × 19.7 × 4.7 in (1,000 × 500 × 120 mm)
  • Maximum contour accuracy: ±0.0008 in (±0.02 mm)
  • Positioning speed: up to 328 ft/min (100 m/min), depending on model and format

Flexible 3D cutting and welding in one clamping with as many as three processing optics and up to six degrees of freedom.

  • Work envelope: 39.4 × 27.6 × 13.8 in (1,000 × 700 × 350 mm)
  • Laser power: 500–8,000 W
  • Materials: mild steel, stainless steel, aluminum, and copper
  • Maximum repeatability: ±0.0012 in (±0.03 mm)

Scalable flying-optics platform that connects laser cutting or welding with forming, punching, embossing, marking, inspection, and other manufacturing steps.

  • Work area: scalable X axis, minimum 39.4 × 9.8 × 13.8 in (1,000 × 250 × 350 mm)
  • Laser power: up to 8,000 W
  • Materials: mild steel, stainless steel, aluminum, and copper
  • Maximum repeatability: ±0.0012 in (±0.03 mm)

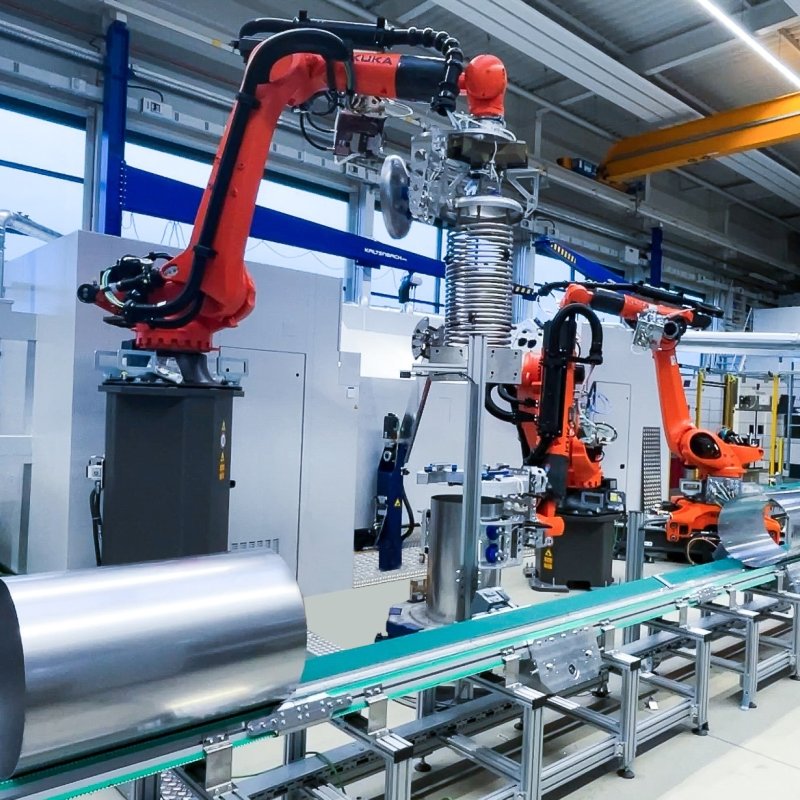

Is full automation in your plan?

Integrated laser-processing systems engineered around your production goals

Improve throughput, repeatability, and flexibility with automated laser welding and laser cutting solutions from Weil Technology.

Contact us to talk about building your custom solution.
